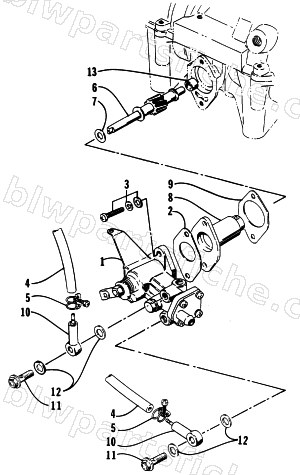

OIL PUMP
1995 JAG DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-014 | OIL PUMP ASS'Y | 1 | $1,047.95 | |
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 3 | 3007-421 | SCREW | 1 | $3.95 | |
| 4 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 5 | 3003-218 | CLIP, HOSE,M7 | 1 | $4.26 | |
| 6 | 3002-770 | GEAR,OIL PUMP DRIVEN | 1 | $94.95 | |
| 7 | 3002-749 | SHIM,M7 | 1 | $2.06 | |
| 8 | 3003-749 | RETAINER,OIL PUMP | 1 | $120.95 | |
| 9 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 13 | 3003-289 | BUSHING,OIL PUMP,M7 | 1 | $5.09 |
