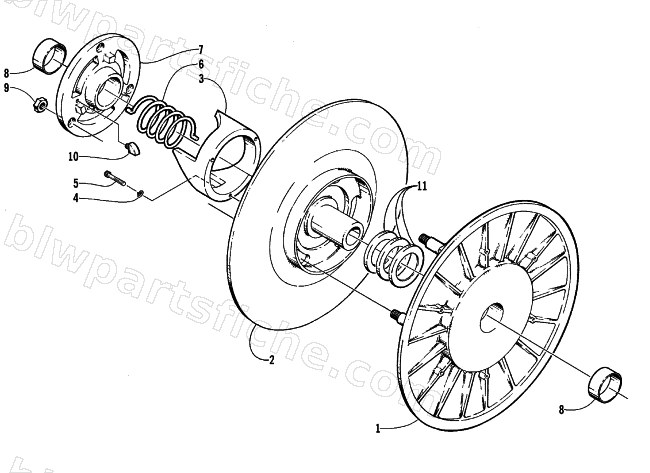

DRIVEN CLUTCH
1995 PUMA 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-074 | CLUTCH,DRIVEN(BLUE,53,2&1) | 1 | $602.95 | |
| 1 | 0748-022 | SHEAVE W/BRG-BUTN DRIVEN(98 PROD) | 1 | $476.95 | |
| 3 | 0648-002 | BRKT, TORQUE - 53 DEG | 1 | $56.95 | |
| 3 | 0648-014 | BKT,TORQUE-49 DEGREE | 1 | $156.95 | |
| 3 | 0148-180 | TORQUE BRACKET-45 DEG | 1 | $71.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 6 | 0648-012 | SPRING,DRIVEN-BLUE | 1 | $116.95 | |
| 6 | 0148-227 | SPRING, DRIVEN-YELLOW | 1 | $39.95 | |
| 7 | 0148-234 | BUTTON RET PLATE MACH | 1 | $56.95 | |
| 8 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0148-177 | BUTTON,DRIVEN CLUTCH | 1 | $7.95 | |
| 11 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 | |
| 11 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 |
