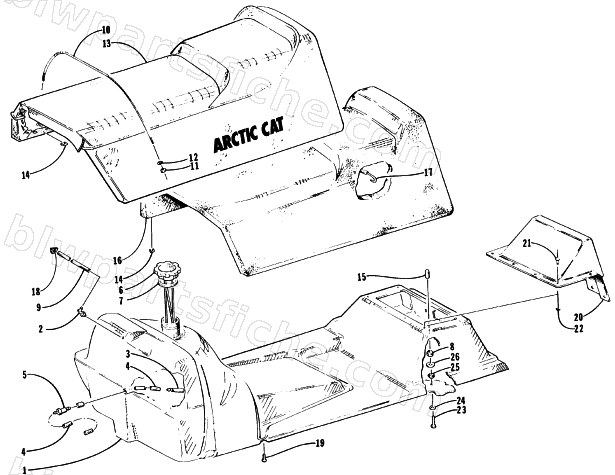

GAS TANK AND SEAT ASSEMBLIES
1996 BEARCAT 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-156 | TANK,GAS-ASSY | 1 | $443.95 | |
| 2 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 3706-219 | HOLDDOWN,SEAT COVER-PTD BLK | 1 | $38.95 | |
| 11 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 12 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 13 | 0716-383 | COVER,SEAT-W/ARCTC CAT | 1 | $436.95 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 16 | 0716-031 | FOAM,SEAT CUSHION 2-UP | 1 | $238.95 | |
| 18 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 19 | 0124-031 | SCREW,TAP HWH #10-24 X .375 | 1 | $13.73 | |
| 21 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 22 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 25 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 |
