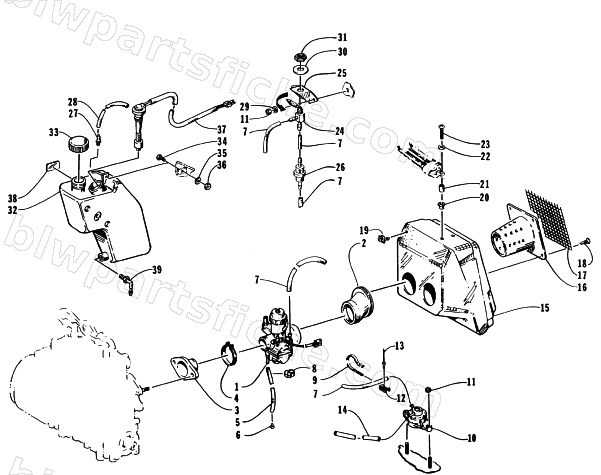

1996 Arctic Cat BEARCAT 550 — CARBURETOR, FUEL PUMP, OIL TANK, AND SILENCER
1996 BEARCAT 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-100 | CARB,VM38-273 W/SWITCH | 1 | $867.95 | |
| 2 | 1670-389 | BOOT, AIR SILENCER | 1 | $37.95 | |
| 3 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 4 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 7 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 8 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 13 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 14 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 15 | 0770-132 | AIR SILENCER W/INSERTS | 1 | $109.95 | |
| 16 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 17 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 18 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 19 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 20 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 21 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 24 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 25 | 0670-284 | BRACKET,MOUNTING-FUEL SHUT-OFF VALVE | 1 | $10.97 | |
| 26 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 27 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 28 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 29 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 30 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 31 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 32 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 33 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 35 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 38 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 39 | 0670-075 | FITTING,ELBOW | 1 | $4.54 |
