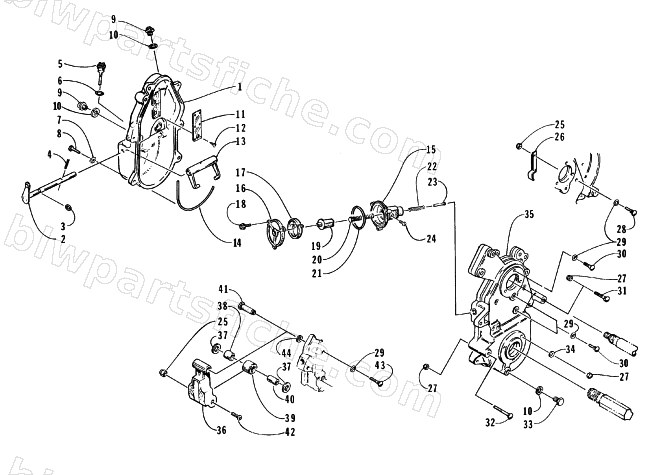

DROPCASE AND CHAIN TENSION ASSEMBLY
1996 BEARCAT 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-425 | COVER, DROPCASE-W/ O-RINGS-REV | 1 | $143.95 | |
| 2 | 0702-291 | SHAFT,SHIFT FORK-PTD BLK | 1 | $63.95 | |
| 3 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 4 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 5 | 0602-483 | STICK, CHECK-OIL LEVEL-REV. | 1 | $41.95 | |
| 6 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 7 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 8 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 9 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 10 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 11 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 12 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 13 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 14 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 16 | 0602-645 | COVER,ADJUSTOR HSG | 1 | $88.95 | |
| 17 | 0602-803 | SPRING,POWER-ADJUSTER SHAFT | 1 | $94.95 | |
| 18 | 0623-526 | SCREW,SELF TAP-TSPNH 10-32X.375 TR Z&Y | 1 | $5.65 | |
| 19 | 1602-536 | SHAFT, CHAIN ADJUSTOR | 1 | $21.95 | |
| 20 | 0602-748 | SCREW, CHAIN ADJUSTER | 1 | $53.95 | |
| 21 | 0602-801 | O-RING-COVER-CHAIN ADJUSTER (2-031) | 1 | $1.09 | |
| 22 | 0602-901 | SPRING, COMPRESSION-ADJ SCREW | 1 | $26.95 | |
| 23 | 0602-804 | RIVET,BTNHD 3/16 X 3/4 | 1 | $0.26 | |
| 24 | 0623-541 | SCREW, MACH-HH 10-32 X .25 | 1 | $0.68 | |
| 25 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 26 | 0702-553 | BRACKET, CHAIN BACKING-WELDT(0602-466) | 1 | $56.95 | |
| 27 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 28 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 29 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 30 | 0623-418 | BOLT,RIB NECK-RDH 5/16-18X7/8 GD5 Z&Y | 1 | $12.95 | |
| 31 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 32 | 8011-142 | BOLT,CRG 5/16-18X3.25 GR1 Z&Y | 1 | $0.95 | |
| 33 | 0602-479 | PLUG, DRAIN-MAGNETIC | 1 | $22.01 | |
| 34 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 35 | 0702-415 | DROPCASE, W/STUDS-PTD | 1 | $217.95 | |
| 36 | 0602-675 | ARM, CHAIN ROLLER | 1 | $35.95 | |
| 37 | 0623-525 | WASHER, FLAT-.5 X 1.01 OD HARDENED | 1 | $7.72 | |
| 38 | 0602-383 | BEARING,CHAIN TIGHTENER-1/2 ID X .75 | 1 | $3.95 | |
| 39 | 0702-129 | ROLLER ASSY-CHAIN TIGHTENER | 1 | $60.95 | |
| 40 | 0602-676 | SHAFT, CHAIN ROLLER | 1 | $20.95 | |
| 41 | 0602-681 | NUT, ROLLER ARM | 1 | $82.95 | |
| 42 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 44 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
