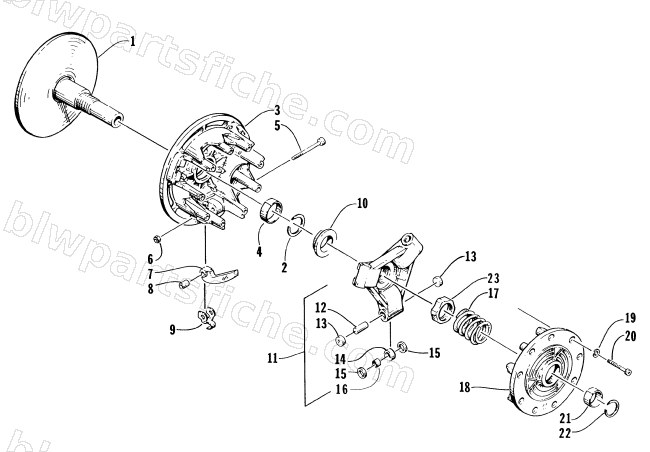

DRIVE CLUTCH ASSEMBLY
1996 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 0 | 0638-905 | ROLLER KIT | 1 | $309.95 | |
| 1 | 0646-276 | SHEAVE, STATIONARY - MACH | 1 | $245.95 | |
| 4 | 0646-200 | BEARING,SHEAVE CJS-A412 | 1 | $41.95 | |
| 5 | 0646-141 | PIN, CAM ARM | 1 | $14.95 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 0746-538 | ARM,CAM-W/BRG 49.5 GRAM | 1 | $16.49 | |
| 7 | 0746-502 | ARM,CAM W/BRG 44.5 | 1 | $16.49 | |
| 7 | 0746-525 | ARM,CAM-44 GRAM W/BRNG | 1 | $16.95 | |
| 7 | 0746-526 | ARM,CAM-42 GRAM W/BRNG | 1 | $21.95 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-196 | SPACER,CLUTCH-SPIDER | 1 | $26.95 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 0646-197 | PIN,ROLLER-SPIDER | 1 | $13.95 | |
| 13 | 0646-293 | BUTTON, TORQUE-MACH | 1 | $19.25 | |
| 14 | 0746-046 | ROLLER,W/BEARING | 1 | $29.95 | |
| 15 | 0646-143 | WASHER,ROLLER-CLUTCH | 1 | $17.95 | |
| 16 | 0646-204 | BEARING,ROLLER-SPIDER | 1 | $26.95 | |
| 17 | 0646-149 | SPRING,CLUTCH-RED | 1 | $57.95 | |
| 18 | 0646-185 | COVER,CLUTCH-MACH | 1 | $91.95 | |
| 19 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 20 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 21 | 0646-201 | BEARING,COVER CJS-900 | 1 | $34.95 | |
| 22 | 0646-151 | SNAP RING,INTL-1 5/16 DIA | 1 | $1.95 | |
| 23 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 74650 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 |
