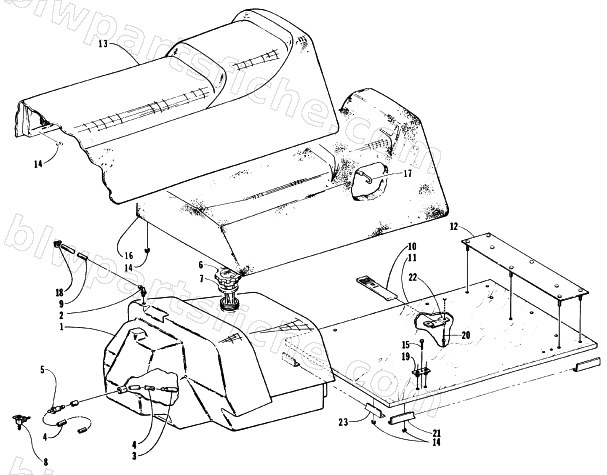

1996 Arctic Cat BEARCAT WIDE TRACK — GAS TANK AND SEAT ASSEMBLIES
1996 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-190 | TANK, GAS-ASSY BRC W/T SP | 1 | $372.95 | |
| 2 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 9 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 10 | 0623-580 | LATCH,SEATBASE | 1 | $19.25 | |
| 11 | 0616-841 | BASE,SEAT-WOOD-W/T | 1 | $95.95 | |
| 12 | 0716-319 | PLATE,BACKING-BACKREST-WELD'T | 1 | $37.95 | |
| 13 | 0716-284 | COVER,SEAT-2-UP-W/O-A/C | 1 | $369.59 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 16 | 0716-285 | FOAM,SEAT-2 UP-W/T | 1 | $191.95 | |
| 18 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 19 | 0716-320 | PLATE,BACKING-HINGE-ASSY | 1 | $12.35 | |
| 21 | 0616-927 | TRIM,L-SHAPE-SEATBASE | 1 | $5.23 | |
| 22 | 0616-885 | BRACKET,LATCH-MTG | 1 | $8.95 | |
| 23 | 0616-926 | TRIM,L-SHAPE-SEATBASE | 1 | $11.95 |
