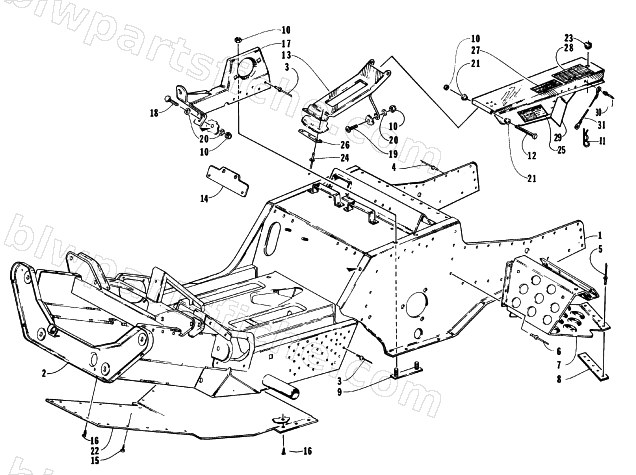

1996 Arctic Cat COUGAR — FRONT FRAME, FOOTREST, AND BELT GUARD ASSEMBLY
1996 COUGAR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-170 | FRONT END-ALUM-FAB. | 1 | $599.95 | |
| 2 | 0707-847 | FRONT END-PTD BLK | 1 | $714.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 7 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 8 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 14 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 22 | 0706-932 | BELLYPAN,CENTER-ROUTERED | 1 | $132.95 | |
| 23 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 24 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 25 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 26 | 0616-649 | PLATE,BACKING-GUARD BRACKET | 1 | $6.95 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 2611-295 | DECAL-JET CHART | 1 | $13.95 | |
| 29 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 31 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 |
