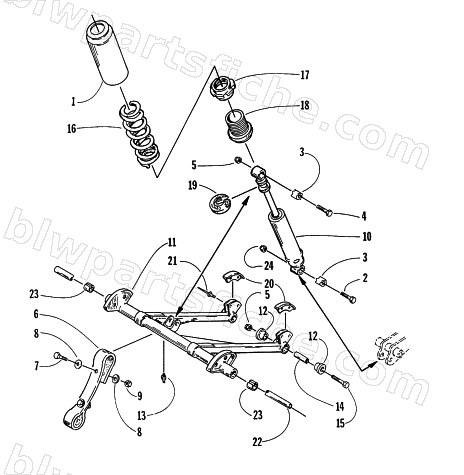

1996 Arctic Cat EXT EFI MOUNTAIN CAT — REAR SUSPENSION FRONT ARM ASSEMBLY
1996 EXT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 2 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 3 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 4 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 0604-579 | STRAP,LIMITER | 1 | $21.95 | |
| 7 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0604-997 | SHOCK ABSORBER-FRONT ARM | 1 | $391.95 | |
| 11 | 0704-243 | ARM,FRONT-FABRICATED | 1 | $270.95 | |
| 12 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 15 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 17 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 18 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 19 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 20 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 21 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 22 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 23 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 24 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 |
