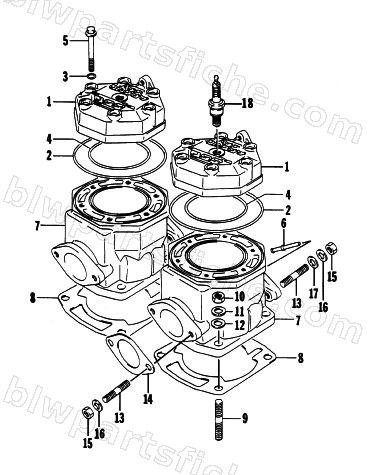

CYLINDER AND HEAD ASSEMBLY
1996 EXT POWDER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-064 | HEAD, CYL. 580 L/C | 1 | $348.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-764 | O RING,HEAD-INNER | 1 | $30.95 | |
| 5 | 3007-408 | BOLT | 1 | $4.26 | |
| 6 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 7 | 3004-457 | CYLINDER, 580 L/C(TRIPLE EX. PORT) | 1 | $1,196.95 | |
| 8 | 3003-763 | GASKET,CYL BASE 550-580L/C | 1 | $29.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3004-363 | R/B 3004-278 | 1 | $0.89 | |
| 13 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 14 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 15 | 3007-416 | NUT | 1 | $2.75 | |
| 16 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 17 | 3423-204 | WASHER | 1 | $1.95 | |
| 18 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 |
