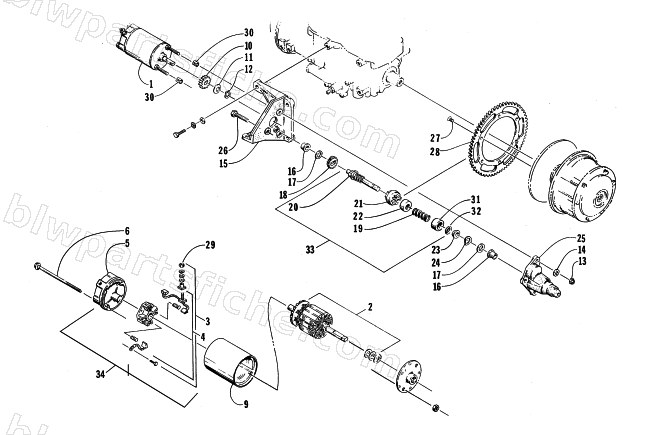

1996 Arctic Cat EXT POWDER SPECIAL — ELECTRIC START - STARTER MOTOR ASSEMBLY
1996 EXT POWDER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0639-039 | KIT, ELECTRIC START EXT P/S | 1 | $814.95 | |
| 1 | 0745-344 | KIT,STARTER MOTOR | 1 | $797.95 | |
| 1 | 0645-578 | MOTOR,STARTER | 1 | $532.95 | |
| 2 | 0645-146 | ARMATURE ASS'Y | 1 | $277.95 | |
| 4 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 5 | 0645-054 | COMMUTATOR CAP | 1 | $225.95 | |
| 6 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 7 | 0745-367 | CAP,MOTOR W/BUSHING | 1 | $57.95 | |
| 10 | 0645-098 | GEAR,PRIMARY-MOTOR | 1 | $79.95 | |
| 11 | 0623-336 | WASHER, SPRING | 1 | $6.95 | |
| 12 | 0645-130 | SNAP RING-MOTOR GEAR | 1 | $1.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0745-054 | BRACKET,OFFFSET STARTER W/BUSHING | 1 | $116.95 | |
| 16 | 0645-108 | BUSHING,SHAFT-PINION (OILITE) | 1 | $19.25 | |
| 17 | 0645-127 | WASHER,THRUST-FLAT | 1 | $1.95 | |
| 18 | 0645-290 | GEAR, ES-20T FX SECONDARY | 1 | $40.95 | |
| 19 | 0645-424 | SPRING,PINION-HD ES | 1 | $6.75 | |
| 22 | 0645-218 | COVER, DUST | 1 | $29.95 | |
| 23 | 0645-107 | SLEEVE,SPACER | 1 | $26.95 | |
| 24 | 0645-126 | WASHER,PINION-WAVE | 1 | $1.19 | |
| 25 | 0745-069 | CAP, END-OFFSET W/BUSHING | 1 | $244.95 | |
| 26 | 0623-440 | SCREW,SELF TAP-HWH 1/4-20X1 | 1 | $0.68 | |
| 27 | 0623-212 | SCREW,FLAT SOC/HD-1/4-20X9/16 | 1 | $3.95 | |
| 28 | 0620-053 | GEAR,RING | 1 | $393.95 | |
| 29 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 30 | 0645-106 | SLEEVE,ALIGNMENT-OFF SET STARTER | 1 | $1.95 | |
| 31 | 0645-217 | STOP, PINION | 1 | $94.95 | |
| 32 | 0645-125 | SNAP RING-CUP RETAINER | 1 | $3.85 |
