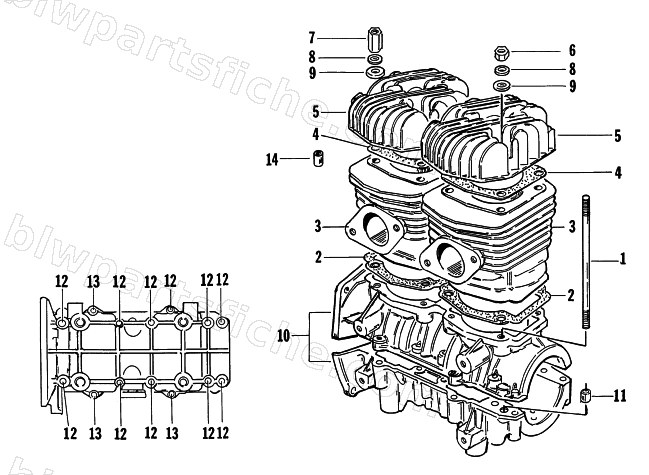

CRANKCASE AND CYLINDER
1996 JAG DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-322 | HEAD, CYLINDER(440FC) | 1 | $335.95 | |
| 2 | 3003-501 | GASKET,CYLINDER 440 F/C | 1 | $20.63 | |
| 3 | 3007-559 | CYLINDER ASSY. | 1 | $834.95 | |
| 4 | 3004-821 | GASKET,HEAD- 440 F/C | 1 | $43.95 | |
| 6 | 3007-416 | NUT | 1 | $2.75 | |
| 7 | 3004-872 | R/B 3004-573 | 1 | $4.29 | |
| 8 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 9 | 3423-204 | WASHER | 1 | $1.95 | |
| 10 | 3004-873 | CRANKCASE (440 FC) | 1 | $1,223.95 | |
| 12 | 3004-874 | BOLT,8MM | 1 | $13.73 | |
| 13 | 3007-411 | BOLT | 1 | $3.16 | |
| 14 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 |
