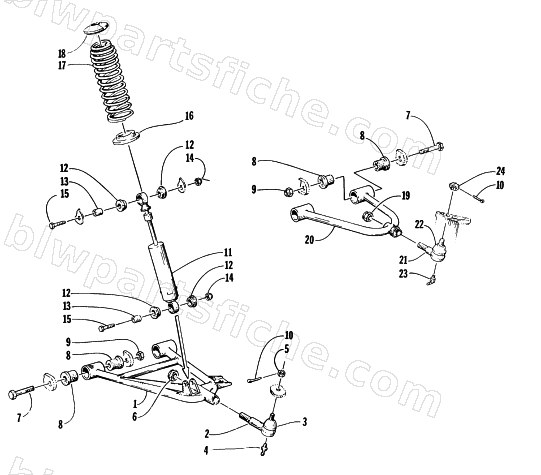

1996 Arctic Cat JAG DELUXE — FRONT SUSPENSION AND SHOCK ABSORBER
1996 JAG DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-612 | ARM,FRONT-LOWER-RH-MACH. | 1 | $268.95 | |
| 1 | 1703-613 | ARM,FRONT-LOWER-LH-MACH. | 1 | $260.95 | |
| 4 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 4 | 0623-451 | FITTING,GREASE-STRAIGHT-METRIC | 1 | $1.95 | |
| 5 | 0623-330 | NUT,HEX-SLOTTED 5/8-18 | 1 | $2.09 | |
| 6 | 0623-273 | NUT,NYL-LOC 3/4-16-Z&Y | 1 | $1.95 | |
| 7 | 8002-411 | SCREW,CAP-HH 1/2-13 X3.00 G5 Z&Y | 1 | $1.95 | |
| 9 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 10 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 11 | 0603-645 | SHOCK ABSORBER-FRONT SUSPENSION | 1 | $159.95 | |
| 12 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 13 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 14 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 0603-399 | RETAINER,SPRING-SHOCK | 1 | $43.95 | |
| 17 | 2703-182 | SPRING,FRT SUSP-PTD BLK | 1 | $108.95 | |
| 18 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 19 | 0623-455 | NUT,FLEX LOCK-THIN 5/8-18 Z&Y | 1 | $5.95 | |
| 20 | 1703-611 | ARM,FRONT-UPPER-MACH. | 1 | $213.95 | |
| 21 | 2603-812 | BALL JOINT,SPINDLE-UPPER | 1 | $112.95 | |
| 22 | 0603-258 | BOOT,DUST-BALL JOINT | 1 | $3.95 | |
| 23 | 0623-277 | FITTING,GREASE 1/4-28 SELF TAPPING-45 DE | 1 | $5.95 | |
| 23 | 0623-452 | FITTING,GREASE-45 DEGREE-METRIC | 1 | $3.95 | |
| 24 | 0623-232 | NUT,HEX-SLOTTED 1/2-20UNF | 1 | $0.95 |
