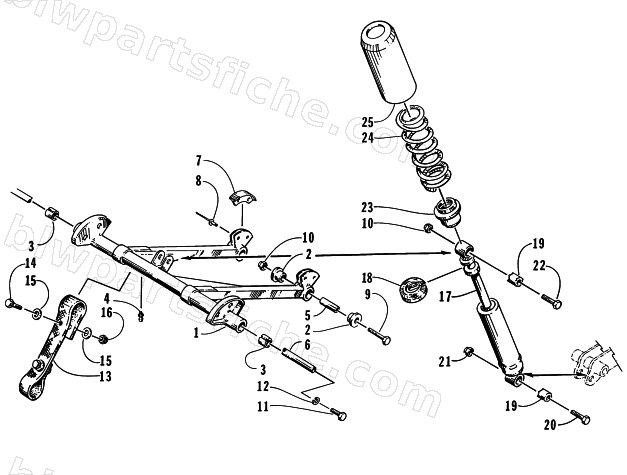

1996 Arctic Cat JAG DELUXE — REAR SUSPENSION FRONT ARM ASSEMBLY
1996 JAG DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-243 | ARM,FRONT-FABRICATED | 1 | $270.95 | |
| 2 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 3 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 4 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 7 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 8 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 9 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 10 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 11 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 0604-579 | STRAP,LIMITER | 1 | $21.95 | |
| 14 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 15 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 19 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 20 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 21 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 22 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 0603-457 | SLEEVE,RETAINER-SPRING | 1 | $76.95 | |
| 24 | 0604-740 | SPRING,COMPRESSION-REAR SUSPENSION | 1 | $94.95 | |
| 25 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 |
