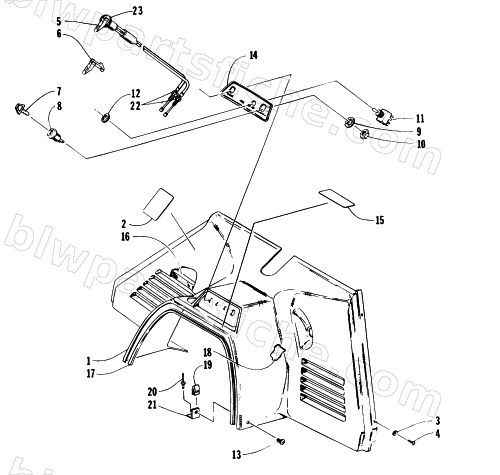

1996 Arctic Cat JAG LIQUID — CONSOLE AND SWITCH ASSEMBLIES
1996 JAG LIQUID
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-198 | WRENCH,NUT-SWITCH | 1 | $1.78 | |
| 1 | 0616-165 | CONSOLE | 1 | $399.95 | |
| 2 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 3 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 4 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 5 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 6 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 7 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 8 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 9 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 10 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 11 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 12 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 14 | 2611-226 | PLATE,CONSOLE-SWITCH | 1 | $22.95 | |
| 15 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 16 | 0617-133 | FOAM,PLATE BACKING-LH VENT | 1 | $46.95 | |
| 17 | 0706-780 | TRIM,CONSOLE-62 LG. | 1 | $16.95 | |
| 18 | 0617-152 | FOAM,CONSOLE-RH | 1 | $14.95 | |
| 18 | 0617-153 | FOAM,CONSOLE-LH | 1 | $15.95 | |
| 19 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 20 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 22 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 |
