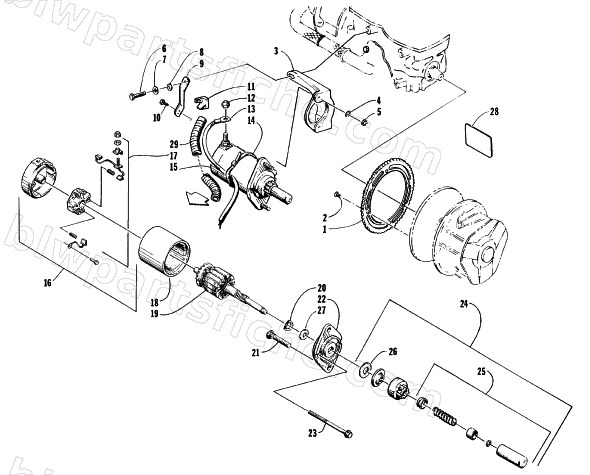

1996 Arctic Cat JAG LIQUID — ELECTRIC START ASSEMBLY
1996 JAG LIQUID
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0639-056 | KIT, ELECTRIC START96 JAG LIQ | 1 | $717.95 | |
| 1 | 0620-053 | GEAR,RING | 1 | $393.95 | |
| 2 | 0623-212 | SCREW,FLAT SOC/HD-1/4-20X9/16 | 1 | $3.95 | |
| 4 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 5 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 6 | 3007-846 | BOLT,M8X1.25X35 | 1 | $4.95 | |
| 7 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 9 | 0645-110 | BRKT,SUPPORT-STARTER | 1 | $19.25 | |
| 10 | 0623-275 | SCREW,SELF TAP-HWH 1/4-20X3/4 | 1 | $0.55 | |
| 11 | 0645-119 | SNUBBER,STARTER | 1 | $6.95 | |
| 12 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 13 | 0645-115 | CABLE,SOLENOID-TO-STARTER [52"] | 1 | $66.95 | |
| 14 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 15 | 0745-357 | R/B 0745-434 | 1 | $497.95 | |
| 16 | 0645-277 | CAP, COMMUTATOR-HD F/C ES | 1 | $177.95 | |
| 17 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 19 | 0645-189 | ARMATURE ASSY-EL START | 1 | $254.95 | |
| 20 | 0645-126 | WASHER,PINION-WAVE | 1 | $1.19 | |
| 21 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 22 | 0645-188 | CAP,DRIVE W/BEARING {56992-40CP} EL STAR | 1 | $117.95 | |
| 23 | 0645-191 | BOLT,STARTER MTR | 1 | $5.95 | |
| 24 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 25 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 27 | 0645-127 | WASHER,THRUST-FLAT | 1 | $1.95 | |
| 28 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 29 | 0716-391 | CONDUIT, FLEXIBLE-.500 DIA 24" C/T/L | 1 | $3.99 |
