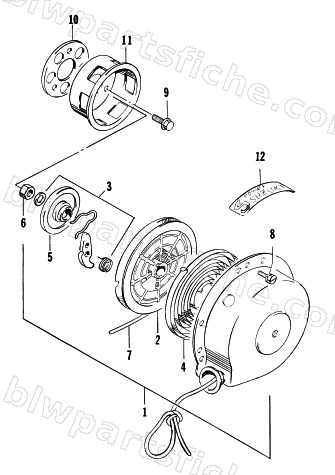

RECOIL STARTER
1996 JAG LIQUID
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 2 | 3003-179 | ROLLER,STARTER | 1 | $68.95 | |
| 3 | 3004-729 | RATCHET SET(w/o friction plate) | 1 | $49.95 | |
| 4 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 5 | 3003-181 | PLATE,DRIVE | 1 | $17.87 | |
| 6 | 3007-684 | NUT,10MM | 1 | $3.16 | |
| 7 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 8 | 3007-374 | BOLT | 1 | $3.16 | |
| 9 | 3007-392 | BOLT | 1 | $3.95 | |
| 10 | 3003-671 | SPACER,RECOIL | 1 | $48.95 | |
| 11 | 3004-819 | PULLEY, STARTER | 1 | $79.95 |
