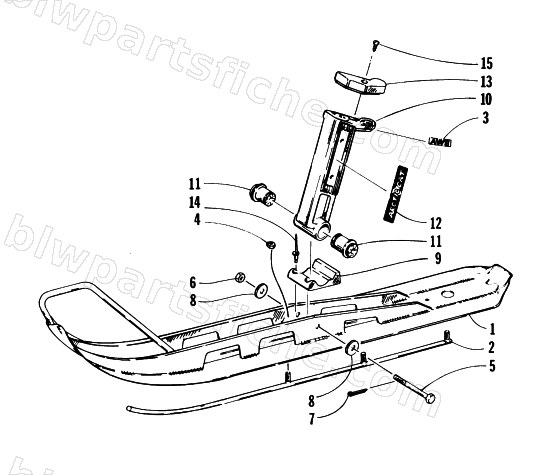

SKI AND SPINDLE ASSEMBLY
1996 JAG LIQUID
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-984 | SKI-WELDT-STEFFES 119 | 1 | $234.95 | |
| 2 | 0703-175 | SKAG-PTD BLK | 1 | $26.95 | |
| 3 | 2611-256 | DECAL, AWS-SPINDLE-HOT GREEN | 1 | $10.95 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-171 | SCREW,CAP 1/2-13 X 5.0 W/HOLE | 1 | $13.95 | |
| 6 | 0623-172 | NUT,HEX-SLOTTED-THK 1/2-13 | 1 | $38.95 | |
| 7 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 8 | 8050-342 | WASHER,FLAT- 1/2 X 1.250 X .100 Z&Y | 1 | $1.37 | |
| 10 | 0703-224 | SPINDLE W/BUSHINGS-RH | 1 | $410.95 | |
| 10 | 0703-225 | SPINDLE W/BUSHINGS-LH | 1 | $410.95 | |
| 11 | 0603-087 | BUSHING, SILENTBLOC FLANGED | 1 | $57.95 | |
| 12 | 1611-752 | R/B 4209-127 | 1 | $2.95 | |
| 13 | 0603-262 | CAP,SPINDLE-RH | 1 | $9.59 | |
| 13 | 0603-263 | CAP,SPINDLE-LH | 1 | $10.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 0623-576 | SCREW,SELF TAP-PHPNH #10-24X1 TYPE F | 1 | $0.65 |
