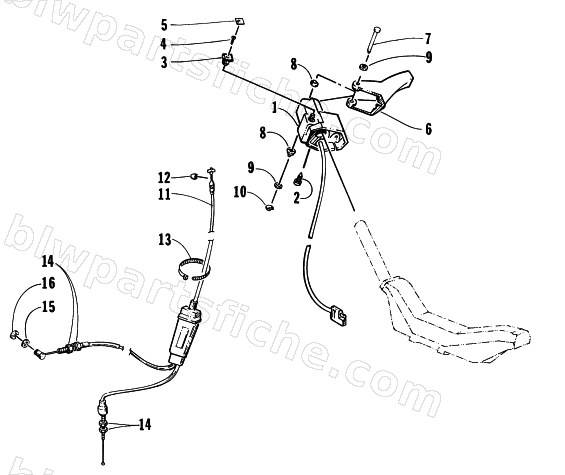

THROTTLE CONTROL ASSEMBLY
1996 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-168 | CONTROL, THROTTLE W/O LEVER | 1 | $144.95 | |
| 2 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 3 | 0609-120 | KNOB,EMER STOP SWITCH | 1 | $15.11 | |
| 4 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 5 | 0609-121 | DECAL,MARK PLATE | 1 | $4.95 | |
| 6 | 0609-173 | LEVER, THROTTLE-35MM | 1 | $32.95 | |
| 7 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 8 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 9 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 10 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 11 | 0687-035 | CABLE,THROTTLE | 1 | $125.95 | |
| 12 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 15 | 0124-056 | WASHER | 1 | $13.73 | |
| 16 | 0124-057 | E-RING | 1 | $1.64 |
