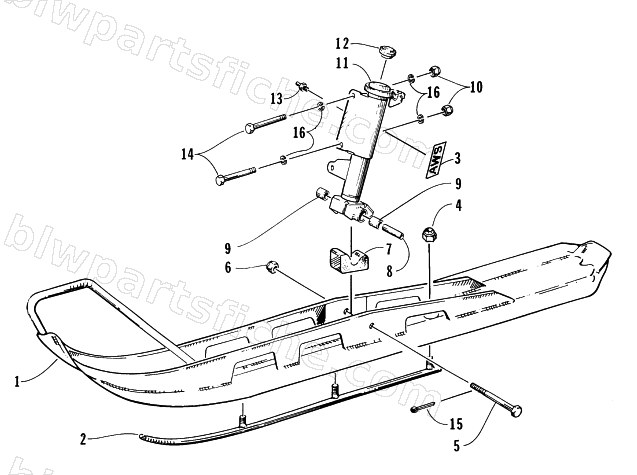

1996 Arctic Cat PANTHER DELUXE — SKI AND FRONT SUSPENSION
1996 PANTHER DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0703-173 | SKAG,CARBIDE-WELDMT (EA) | 1 | $56.95 | |
| 3 | 2611-291 | DECAL, AWS-WHITE-LARGE | 1 | $5.95 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-080 | SCREW,CAP W/HOLE-HH 7/16-14X4 1/4 GR5 Z& | 1 | $20.63 | |
| 6 | 0623-027 | NUT,FLEX7/16-14 NC | 1 | $6.95 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 11 | 0703-266 | SPINDLE/HOUSING-MFG-ASS,Y RH | 1 | $260.95 | |
| 11 | 0703-267 | SPINDLE/HOUSING-MFG-ASS,Y LH | 1 | $244.95 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 8013-232 | SCREW,CAP-HH 3/8-16 X 3.25 GR8 Z&Y | 1 | $1.95 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 |
