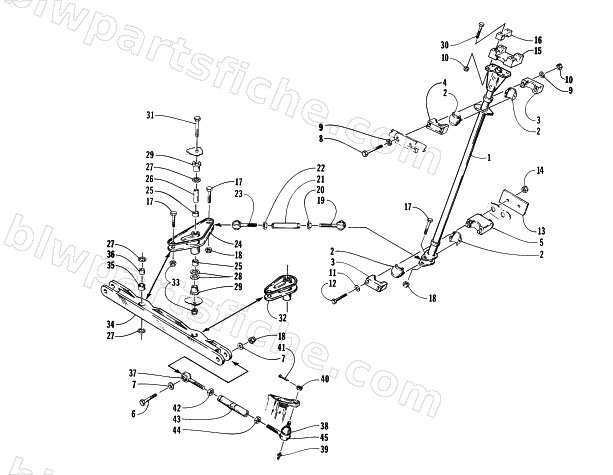

TIE ROD AND STEERING POST ASSEMBLY
1996 PUMA 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-996 | POST,STEERING-PTD BLK | 1 | $179.95 | |
| 2 | 0605-149 | BEARING,STEERING POST | 1 | $3.02 | |
| 3 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 4 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 5 | 0605-407 | HOUSING,BEARING-LOWER(99PROD) | 1 | $79.95 | |
| 6 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 7 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 8 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 12 | 0623-224 | SCREW,CAP -HH 5/16-18 X 3.75 ZN | 1 | $0.95 | |
| 13 | 0605-162 | PLATE,BACKING-STEERING POST (F/C) | 1 | $12.35 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 16 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 17 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 18 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 20 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 21 | 0605-154 | TUBE,TIE ROD-.625 X 3.70" (3/8-24) | 1 | $23.39 | |
| 22 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 24 | 0705-057 | ARM,STEERING-FAB | 1 | $55.95 | |
| 25 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 27 | 0605-065 | WASHER,SPACER-STRG | 1 | $4.68 | |
| 28 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 29 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 30 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 31 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 33 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 34 | 0705-085 | DRAG LINK W/BEARING | 1 | $466.95 | |
| 35 | 0605-107 | BEARING,GARLOCK 10DU08 | 1 | $2.61 | |
| 36 | 0605-066 | AXLE,DRAG-LINK | 1 | $6.83 | |
| 37 | 0605-170 | ROD END,DRAG LINK-3/8 X 1/2 | 1 | $58.95 | |
| 38 | 0603-148 | BOOT,DUST-BALL JOINT | 1 | $17.95 | |
| 39 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 39 | 0623-451 | FITTING,GREASE-STRAIGHT-METRIC | 1 | $1.95 | |
| 40 | 0623-173 | NUT,HEX-SLOTTED 3/8-24 UNF | 1 | $51.95 | |
| 41 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 42 | 0623-176 | NUT,JAM 1/2-20 | 1 | $1.92 | |
| 43 | 0605-067 | TUBE,TIE ROD-.750 X 4.50" (1/2-20) | 1 | $92.95 | |
| 44 | 0623-158 | NUT,JAM 1/2-20 LH THD | 1 | $1.39 |
