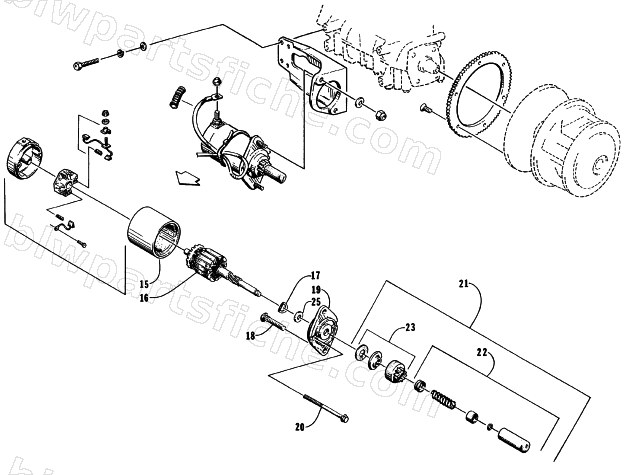

ELECTRIC START ASSEMBLY - STARTER MOTOR
1996 PUMA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0645-168 | RING GEAR,ELECTRIC START | 1 | $355.95 | |
| 2 | 0623-441 | R/B 1623-128 | 1 | $0.95 | |
| 4 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 5 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 6 | 8012-040 | SCREW,CAP-HHNLP 1/4-20X.75 G5 Z&Y | 1 | $5.65 | |
| 7 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 10 | 0645-115 | CABLE,SOLENOID-TO-STARTER [52"] | 1 | $66.95 | |
| 11 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 12 | 0745-357 | R/B 0745-434 | 1 | $497.95 | |
| 13 | 0645-277 | CAP, COMMUTATOR-HD F/C ES | 1 | $177.95 | |
| 14 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 16 | 0645-189 | ARMATURE ASSY-EL START | 1 | $254.95 | |
| 17 | 0645-126 | WASHER,PINION-WAVE | 1 | $1.19 | |
| 18 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 19 | 0645-188 | CAP,DRIVE W/BEARING {56992-40CP} EL STAR | 1 | $117.95 | |
| 20 | 0645-191 | BOLT,STARTER MTR | 1 | $5.95 | |
| 21 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 22 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 23 | 0637-265 | UPDATE KIT,STARTER PINION DRIVE(4-1-2) | 1 | $92.95 | |
| 24 | 0716-341 | TUBE,BUMPER SUPPORT-LH | 1 | $10.95 | |
| 25 | 0645-127 | WASHER,THRUST-FLAT | 1 | $1.95 |
