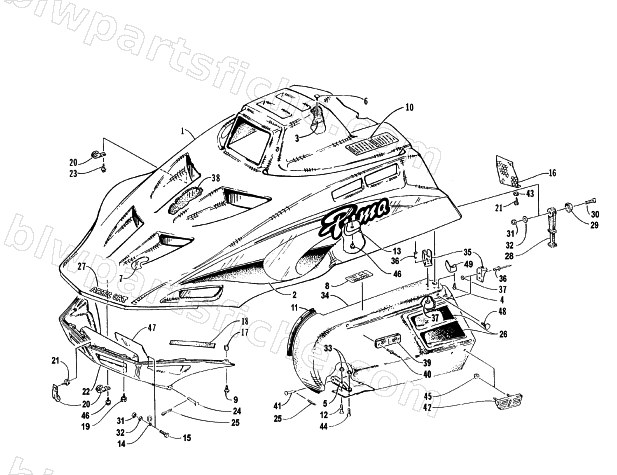

HOOD AND SIDE PODS
1996 PUMA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-274 | HOOD W/O DECALS | 1 | $1,534.95 | |
| 1 | 0718-385 | HOOD W/ DECALS | 1 | $1,236.95 | |
| 2 | 2611-210 | DECAL,HOOD-RH | 1 | $75.95 | |
| 2 | 2611-211 | DECAL,HOOD-LH | 1 | $75.95 | |
| 3 | 0717-012 | FOAM,HOOD-HEADLIGHT POD | 1 | $15.95 | |
| 4 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 5 | 0606-955 | HINGE,SIDE POD | 1 | $3.95 | |
| 6 | 0623-143 | CLIP,CHRISTMAS TREE | 1 | $4.95 | |
| 7 | 0117-835 | TAPE ALUM REFLECTORIZED 6X6 SQ(0619-727) | 1 | $8.89 | |
| 8 | 1611-581 | DECAL,CAUTION-JETTING/STORAGE | 1 | $21.95 | |
| 9 | 0623-357 | SCREW,ST-HWH #8 X 1.25 AB BLK ZINC | 1 | $0.15 | |
| 10 | 1611-407 | DECAL,WARNING-HOOD | 1 | $19.95 | |
| 11 | 0706-974 | TRIM-10' | 1 | $58.95 | |
| 12 | 8007-402 | SCREW,MACH-CRTH 10-24X1.0 G2 Z&Y | 1 | $1.37 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 0706-958 | SCREEN,ASS'Y-VENT HOOD-REAR RH | 1 | $15.95 | |
| 16 | 0706-849 | SCREEN,VENT-HOOD-REAR LH | 1 | $13.29 | |
| 17 | 0606-985 | BUSHING,ALIGNMENT-HOOD/NOSEPIECE | 1 | $18.95 | |
| 18 | 0606-954 | PROTECTOR,TRIM-HOOD/NOSEPIECE | 1 | $11.95 | |
| 19 | 0623-332 | SCREW,S.T.HI-LO,HEX WH HD #8 X 1.12 BLK | 1 | $0.25 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0623-311 | SCREW,SELF TAP-HWH #8X3/8 TYPE A | 1 | $0.65 | |
| 23 | 0623-280 | SCREW,SELF TAP-HWH #8X5/8 TYPE A | 1 | $0.68 | |
| 24 | 0302-016 | PIN,TIGHTENER | 1 | $5.95 | |
| 27 | 1611-754 | DECAL,ARCTIC CAT-WHITE | 1 | $19.95 | |
| 28 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 29 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 30 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 31 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 33 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 34 | 0718-197 | POD,LH W/FOAM | 1 | $378.95 | |
| 34 | 0718-196 | POD,RH W/FOAM | 1 | $521.95 | |
| 35 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 36 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 37 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 38 | 0717-030 | FOAM,HOOD-CENTER (VENTS) | 1 | $17.95 | |
| 39 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 41 | 0623-230 | PIN,CLEVIS 1/4 X 1 7/8 | 1 | $3.95 | |
| 42 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 43 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 44 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 45 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 46 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 48 | 0623-259 | CLIP,CHRISTMAS TREE-1/4 | 1 | $1.95 | |
| 49 | 0606-801 | GUIDE,POD-LH | 1 | $2.95 |
