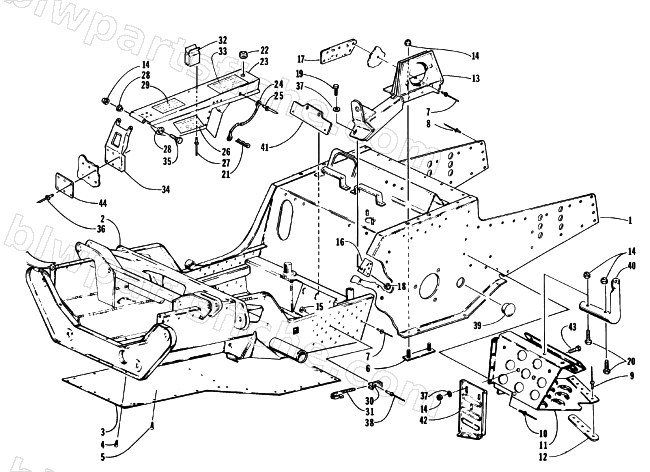

1996 Arctic Cat THUNDERCAT — FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY
1996 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-232 | FRONT END,CHASSIS 96 T/C ZRT800 | 1 | $1,353.95 | |
| 2 | 0707-240 | FRONT END-WELDT | 1 | $1,214.95 | |
| 4 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 5 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 11 | 0716-261 | FOOTREST,LH-W/STUDS | 1 | $126.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 1707-474 | SUPPORT,BEARING-PTD BLK | 1 | $223.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 18 | 8043-362 | NUT,1/4-20 HEX LOCK-MET TOP LOCK GRA Z&Y | 1 | $0.25 | |
| 19 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 20 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 21 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 22 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 23 | 0707-187 | GUARD ASSY. | 1 | $148.95 | |
| 24 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 27 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 28 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 29 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 30 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 33 | 2611-315 | DECAL,JET CHART 96 THC | 1 | $13.95 | |
| 34 | 0616-719 | BRKT,MTG-GUARD | 1 | $15.95 | |
| 35 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 36 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 37 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 38 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 39 | 0623-471 | PLUG,HOLE-.750 DIA BLACK | 1 | $1.23 | |
| 40 | 0716-219 | TUBE,BUMPER SUPPORT | 1 | $30.95 | |
| 41 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 42 | 0616-387 | GUARD,DRIVE BELT-FOOTREST | 1 | $33.95 | |
| 43 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 44 | 0616-345 | PLATE,BACKING-CLUTCH SHIELD MNT | 1 | $47.95 |
