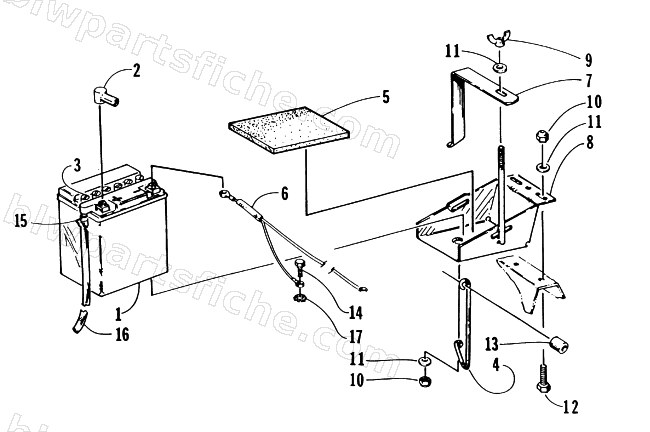

1996 Arctic Cat WILDCAT TOURING — BATTERY ASSEMBLY
1996 WILDCAT TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-046 | BATTERY PKG (0645-176) | 1 | $96.95 | |
| 2 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 3 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 4 | 0616-495 | BRACKET,SUPPORT-BATT TRAY | 1 | $6.69 | |
| 5 | 0617-233 | FOAM,BAT.TRAY .25 X 3 X 5.25 | 1 | $2.95 | |
| 7 | 0645-177 | STRAP,EFI BATTERY HOLDDOWN | 1 | $28.95 | |
| 8 | 0745-044 | TRAY,BATTERY-WELDMENT | 1 | $126.95 | |
| 9 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 13 | 0645-158 | SPACER, BATT SUPPORT | 1 | $2.95 | |
| 14 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 15 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 16 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 17 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
