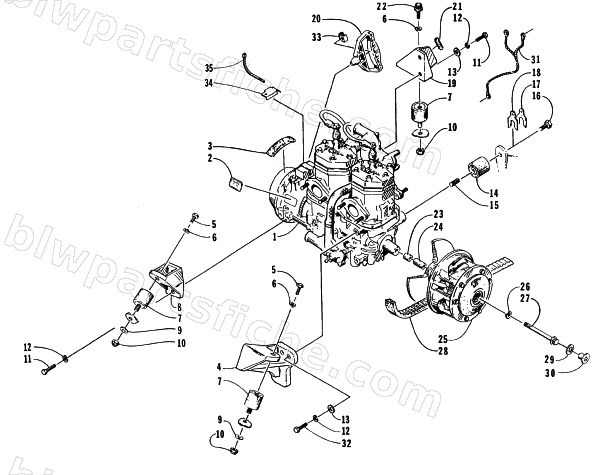

ENGINE AND RELATED PARTS
1996 WILDCAT TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-172 | ENGINE, 700EFI-SP W/O EFI COMP. | 1 | $3,469.95 | |
| 2 | 2611-323 | DECAL,ENGINE P/N 0662-167 | 1 | $3.95 | |
| 4 | 0708-015 | BRKT,ENG MTG-FRONT PTO-FABR | 1 | $61.95 | |
| 5 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 6 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 7 | 0608-061 | MOUNT,ENGINE | 1 | $36.95 | |
| 8 | 0708-014 | BRKT,ENG MTG-FRONT MAG-FABR | 1 | $117.95 | |
| 9 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 10 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 11 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 12 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 13 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 14 | 0608-075 | MOUNT,ENGINE-REAR (90DURO) | 1 | $94.95 | |
| 16 | 8002-400 | SCREW,CAP-HH 1/2-13 X.75 G5 Z&Y | 1 | $1.09 | |
| 17 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 18 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 19 | 0708-016 | BRKT,ENG MTG-REAR MAG-FABR | 1 | $27.95 | |
| 20 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 21 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 22 | 0623-265 | SCREW,FLANGE 12-PT-3/8-16X3/4 | 1 | $5.95 | |
| 23 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 24 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 25 | 0746-194 | CLUTCH,DRIVE-UNCAL-8.0" 30MM/S/NFP | 1 | $971.95 | |
| 26 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 27 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 28 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 29 | 0646-114 | WASHER,INTERNAL LOCK-HD-7/8 | 1 | $1.64 | |
| 30 | 0646-113 | CAP,RETAINER-COMET CLUTCH | 1 | $27.95 | |
| 32 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 33 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 34 | 0608-117 | BRKT,GROUND WIRE-ENGINE | 1 | $13.95 | |
| 35 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
