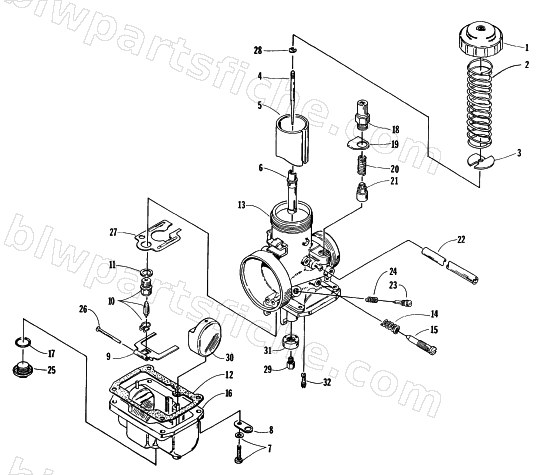

1996 Arctic Cat ZR 440 — CARBURETOR VM38
1996 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-502 | CARB.-VM 34 | 1 | $597.95 | |
| 1 | 6505-826 | TOP,MIXING BODY | 1 | $81.95 | |
| 2 | 6505-894 | SPRING (VM 34\55A) | 1 | $10.95 | |
| 3 | 6505-001 | PLATE | 1 | $10.95 | |
| 4 | 6505-252 | JET NEEDLE 6DH2 | 1 | $26.95 | |
| 5 | 6505-896 | PISTON VALVE (832-35013B-2.0) | 1 | $165.95 | |
| 6 | 6505-221 | NEEDLE JET P-4 (159) | 1 | $32.95 | |
| 7 | 6505-195 | SCREW | 1 | $1.78 | |
| 8 | 6505-094 | PLATE,HOSE-CARBURETOR | 1 | $10.97 | |
| 9 | 6505-895 | FLOAT ARM (VM34\73) | 1 | $17.87 | |
| 10 | 6505-171 | VALVE,NEEDLE | 1 | $50.95 | |
| 11 | 6505-102 | WASHER,VALVE SEAT | 1 | $1.09 | |
| 12 | 6505-827 | GASKET-FLOAT CHAMBER | 1 | $16.49 | |
| 14 | 6505-021 | SPRING | 1 | $3.44 | |
| 15 | 6505-101 | SCREW,THROTTLE STOP | 1 | $6.89 | |
| 16 | 6505-892 | FLOAT BODY ASSY(VM34\92A) | 1 | $90.95 | |
| 17 | 6505-243 | O-RING PLUG CARBURETOR | 1 | $4.95 | |
| 18 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 19 | 6505-893 | PLATE(VM32\241) | 1 | $10.97 | |
| 20 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 21 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 22 | 6505-280 | TUBE, AIR VENT | 1 | $6.34 | |
| 23 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 24 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 25 | 6505-184 | SCREW, DRAIN | 1 | $13.73 | |
| 26 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 27 | 6505-831 | PLATE | 1 | $15.11 | |
| 28 | 6505-610 | E-RING | 1 | $2.19 | |
| 29 | 6505-076 | JET MAIN 340 | 1 | $6.75 | |
| 30 | 6505-828 | FLOAT | 1 | $33.95 | |
| 32 | 6505-047 | JET PILOT 40 | 1 | $6.34 |
