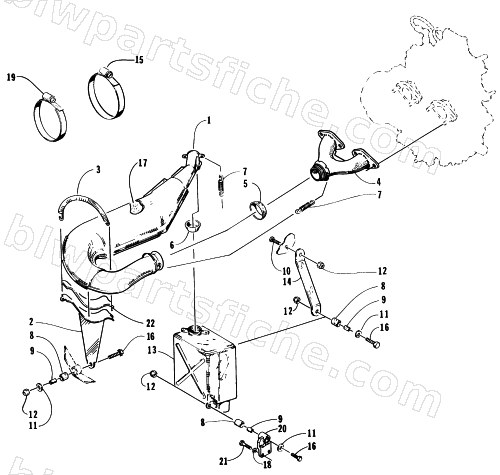

1996 Arctic Cat ZR 440 — EXHAUST ASSEMBLY
1996 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-200 | CHAMBER,EXPANSION-ASSY | 1 | $982.95 | |
| 2 | 0712-683 | BRKT, SUPPORT-EXP CHAMBER-WELDT | 1 | $15.95 | |
| 3 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 4 | 0712-201 | MANIFOLD,EXHAUST-WELDT | 1 | $125.95 | |
| 5 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 6 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 7 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 8 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 10 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0712-202 | RESONATOR,EXHAUST-WELDT | 1 | $308.95 | |
| 14 | 0612-479 | BRKT,MTG-RESONATOR-OUTER | 1 | $15.11 | |
| 15 | 0623-550 | CLAMP,PIPE COVER-.50 X 18.00 | 1 | $4.95 | |
| 16 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 18 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 19 | 0623-549 | CLAMP,PIPE COVER-.50 X 30.00 | 1 | $10.95 | |
| 20 | 0712-207 | BRKT,MTG-RESONATOR-WELDT | 1 | $23.39 | |
| 21 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 |
