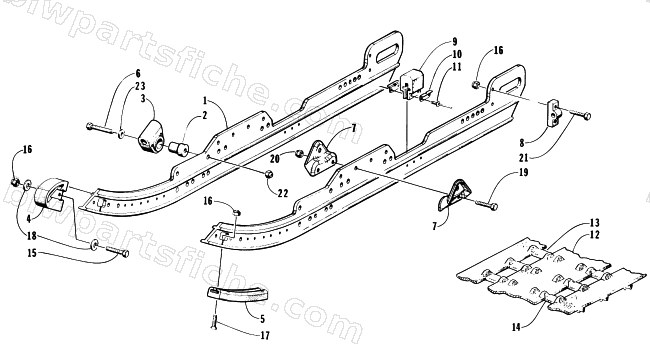

1996 Arctic Cat ZR 440 — SLIDE RAIL AND TRACK ASSEMBLY
1996 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-917 | RAIL,SLIDE-FORMED | 1 | $324.95 | |
| 2 | 0604-912 | BLOCK,SLIDE-SPRING-MTG | 1 | $27.95 | |
| 3 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 5 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 6 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 7 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 8 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 9 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 10 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0602-798 | TRACK,121X2.52X.725 -3/5-12 | 1 | $627.95 | |
| 13 | 0602-819 | CLIP,TRACK-FLAT 012-0078 | 1 | $3.95 | |
| 14 | 2602-385 | CLIP,GUIDE | 1 | $4.40 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 22 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 23 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 |
