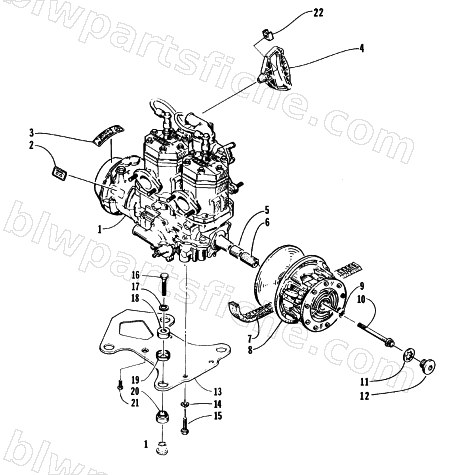

1996 Arctic Cat ZR 580 EFI ETT — ENGINE AND RELATED PARTS
1996 ZR 580 EFI ETT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-171 | ENGINE, 580EFI-3 PORT W/O EFI COMP. | 1 | $6,151.95 | |
| 2 | 2611-298 | DECAL,ENGINE 0662-164 | 1 | $3.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 8 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 0646-114 | WASHER,INTERNAL LOCK-HD-7/8 | 1 | $1.64 | |
| 12 | 0646-113 | CAP,RETAINER-COMET CLUTCH | 1 | $27.95 | |
| 13 | 0608-114 | PLATE,MTG-ENGINE | 1 | $242.95 | |
| 14 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 15 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 16 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 17 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 18 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
