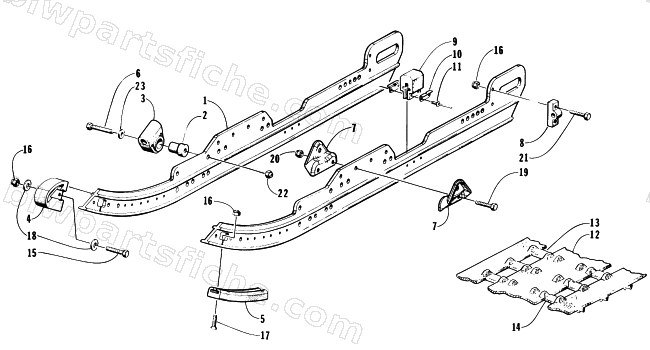

1996 Arctic Cat ZR 580 EFI ETT — SLIDE RAIL AND TRACK ASSEMBLY
1996 ZR 580 EFI ETT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-917 | RAIL,SLIDE-FORMED | 1 | $324.95 | |
| 2 | 0604-912 | BLOCK,SLIDE-SPRING-MTG | 1 | $27.95 | |
| 3 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 5 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 6 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 7 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 8 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 9 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 10 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0602-798 | TRACK,121X2.52X.725 -3/5-12 | 1 | $627.95 | |
| 13 | 0602-819 | CLIP,TRACK-FLAT 012-0078 | 1 | $3.95 | |
| 14 | 2602-385 | CLIP,GUIDE | 1 | $4.40 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 22 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 23 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 |
