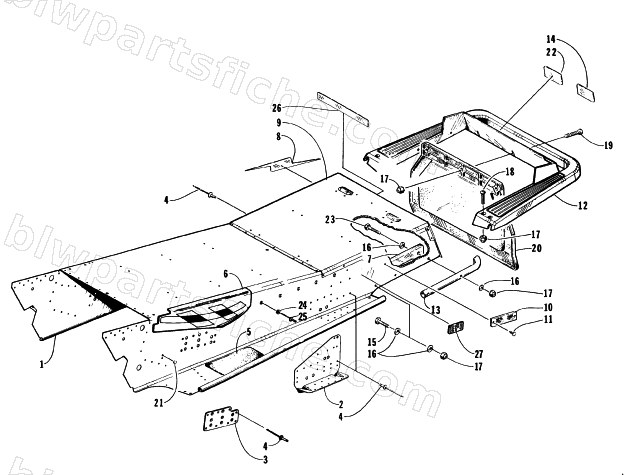

1996 Arctic Cat ZR 580 EFI ETT — TUNNEL AND REAR BUMPER
1996 ZR 580 EFI ETT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-469 | TUNNEL-ASS'Y | 1 | $808.95 | |
| 2 | 2706-608 | BRACKET,SUSP.RH-PTD BLK | 1 | $92.95 | |
| 2 | 2706-609 | BRACKET,SUSP.LH-PTD BLK | 1 | $92.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 2611-380 | DECAL,TUNNEL-R.H. | 1 | $57.95 | |
| 6 | 2611-381 | DECAL,TUNNEL-L.H. | 1 | $60.95 | |
| 7 | 0604-885 | GUIDE,INNER TUNNEL SIDE PROTECTOR | 1 | $21.95 | |
| 8 | 2611-504 | DECAL,TUNNEL-REAR RH | 1 | $19.95 | |
| 8 | 2611-505 | DECAL,TUNNEL-REAR LH | 1 | $19.95 | |
| 9 | 0616-728 | PLATE,END-REAR TUNNEL | 1 | $256.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0616-730 | BUMPER,REAR-'ETT' | 1 | $172.95 | |
| 13 | 0616-314 | INSERT,BUMPER-ALUM. | 1 | $39.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 22 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 23 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 24 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 25 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 26 | 2611-503 | DECAL,TUNNEL-REAR | 1 | $30.95 | |
| 27 | 1611-789 | DECAL, EFI -TUNNEL | 1 | $3.95 |
