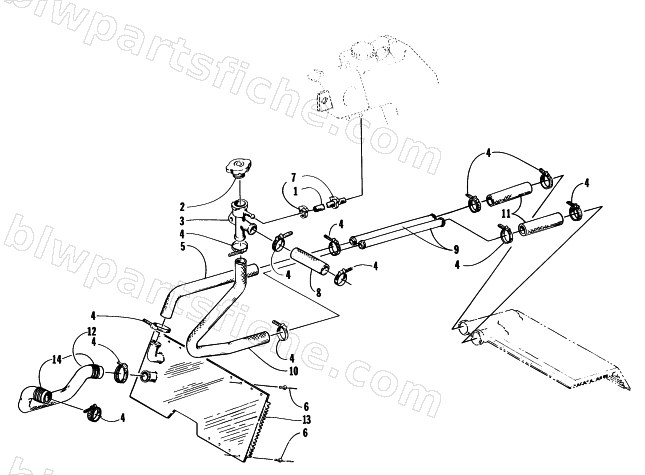

COOLING ASSEMBLY
1996 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 1 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 4 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 5 | 0610-039 | HOSE,FRT EXCH TO RH TUBE | 1 | $26.95 | |
| 6 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 7 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 8 | 0610-041 | HOSE,REAR EXCH TO LH TUBE | 1 | $21.95 | |
| 9 | 0606-468 | TUBE,HEAT EX. 39 | 1 | $55.95 | |
| 10 | 0610-068 | HOSE,LH TUBE TO FILLER NECK | 1 | $45.95 | |
| 13 | 0706-826 | HEAT EXCHANGER FRONT-WELDMENT | 1 | $206.95 | |
| 14 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 |
