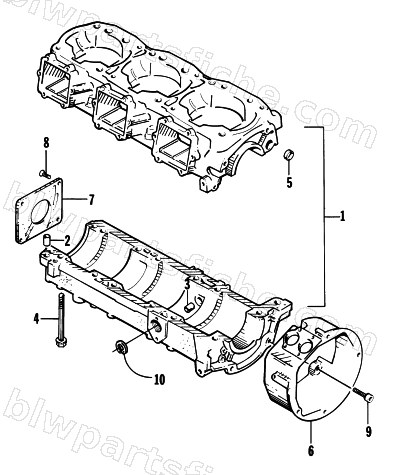

1996 Arctic Cat ZRT 600 — CRANKCASE ASSEMBLY
1996 ZRT 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-048 | CRANKCASE-ASSY (FROM 3004-912)(600 L/CX3 | 1 | $1,375.95 | |
| 2 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 3 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 4 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 5 | 3004-782 | PLUG,20MM | 1 | $11.59 | |
| 6 | 3003-945 | CASE, MAGNETO (W/SENSOR HOLE ) | 1 | $560.95 | |
| 7 | 3003-444 | PLATE, OIL SEAL 88 650 WILDCAT | 1 | $52.95 | |
| 8 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 9 | 3007-557 | BOLT | 1 | $4.68 | |
| 10 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 |
