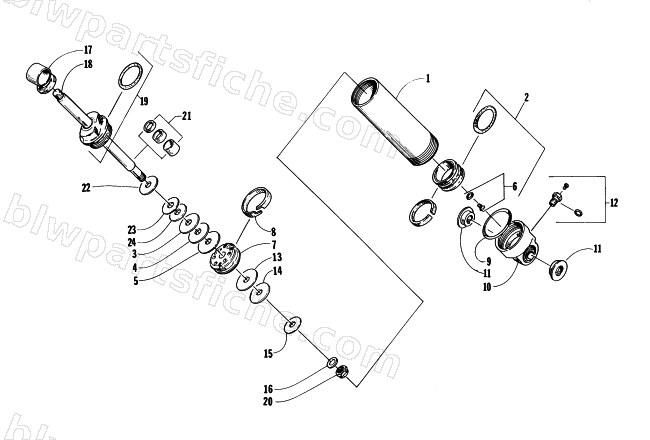

REAR SUSPENSION FRONT ARM SHOCK ABSORBER
1996 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1604-006 | SHOCK,FRONT ARM-FOX | 1 | $601.95 | |
| 0 | 1639-769 | REBUILD KIT, A/C SHOCK-(IFP & RES. SHOCK | 1 | $75.95 | |
| 2 | 0703-722 | PISTON,FLOATING-ASSY (1.459 BORE) | 1 | $117.95 | |
| 3 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 4 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 5 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 6 | 0703-340 | SCREW,RELIEF-WITH O-RING(RB 0703-724) | 1 | $5.95 | |
| 7 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 8 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 9 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 10 | 1604-578 | ENDCAP, SHOCK - ASSY (FOX) | 1 | $157.95 | |
| 11 | 1604-008 | BUSHING,FOX-FR ARM SHK(FOX ONLY) | 1 | $16.95 | |
| 12 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 13 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 15 | 0603-330 | VALVE, .700X .006 (3/8 ID) | 1 | $12.95 | |
| 16 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 17 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 18 | 0604-626 | ROD, SHOCK - 5.280" | 1 | $152.95 | |
| 19 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 20 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 21 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 21 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 21 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 | |
| 22 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 23 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 |
