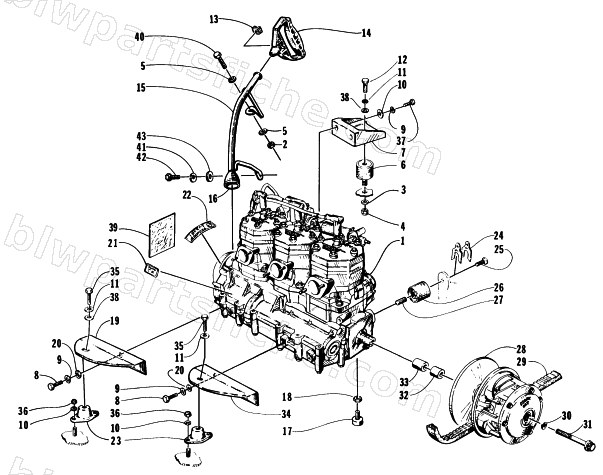

1996 Arctic Cat ZRT 800 — ENGINE AND RELATED PARTS
1996 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-184 | ENGINE,800CC L/C | 1 | $8,264.95 | |
| 2 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0608-074 | MOUNT, ENGINE(90 DURO)-RACING | 1 | $84.95 | |
| 7 | 0708-008 | BRKT,ENG MTG-REAR-MACH | 1 | $42.95 | |
| 8 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 9 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 10 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 11 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 12 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 13 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0708-029 | GUIDE,RECOIL ROPE-WELD'T | 1 | $68.95 | |
| 16 | 0603-148 | BOOT,DUST-BALL JOINT | 1 | $17.95 | |
| 17 | 0608-088 | SNUBBER,ENGINE-BOTTOM 70 DUROMETER | 1 | $15.95 | |
| 18 | 0123-005 | NUT,JAM 1/2-13 | 1 | $3.16 | |
| 19 | 0708-006 | BRKT,ENG MTG-FRONT RH-MACH | 1 | $67.95 | |
| 20 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 21 | 2611-200 | DECAL,ENGINE P/N 0662-158 | 1 | $5.95 | |
| 23 | 0608-350 | MOUNT,ENGINE=(K69 60 DURO) | 1 | $32.95 | |
| 24 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 24 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 25 | 8002-400 | SCREW,CAP-HH 1/2-13 X.75 G5 Z&Y | 1 | $1.09 | |
| 26 | 0608-075 | MOUNT,ENGINE-REAR (90DURO) | 1 | $94.95 | |
| 28 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 29 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 30 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 31 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 32 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 33 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 34 | 0708-007 | BRKT,ENG MTG-FRONT LH-MACH | 1 | $67.95 | |
| 35 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 36 | 0623-422 | NUT,FLEXLOCK-5/16-18 UNC Z&Y | 1 | $1.50 | |
| 37 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 38 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 39 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 40 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 41 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 42 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 43 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 |
