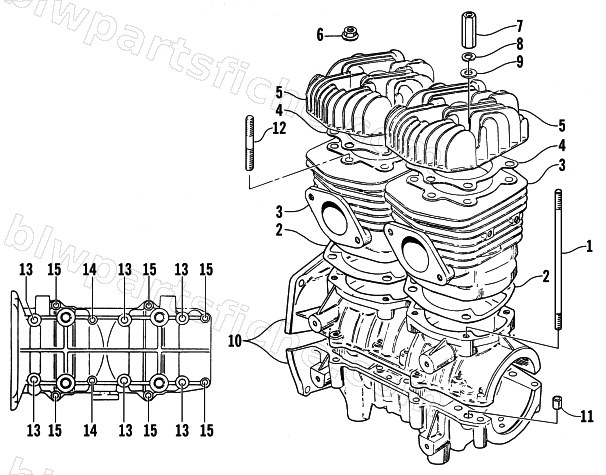

CRANKCASE AND CYLINDER
1997 BEARCAT 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-712 | BOLT,STUD-CYLINDER,8MM | 1 | $12.35 | |
| 2 | 3004-321 | GASKET, CYLINDER 340F/C | 1 | $20.63 | |
| 3 | 3003-627 | CYLINDER, 340 F/C | 1 | $375.95 | |
| 4 | 3004-320 | GASKET, HEAD | 1 | $43.95 | |
| 5 | 3002-756 | HEAD,CYL.-340F/C | 1 | $296.95 | |
| 6 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 7 | 3004-868 | NUT,HIGH,8MM | 1 | $6.95 | |
| 8 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 9 | 3423-204 | WASHER | 1 | $1.95 | |
| 10 | 3004-824 | CRANK CASE,340 F/C | 1 | $1,370.95 | |
| 11 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 12 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 13 | 3004-869 | BOLT, 8 X 65 | 1 | $3.95 | |
| 14 | 3004-574 | BOLT, 6X65 | 1 | $3.95 | |
| 15 | 3007-411 | BOLT | 1 | $3.16 |
