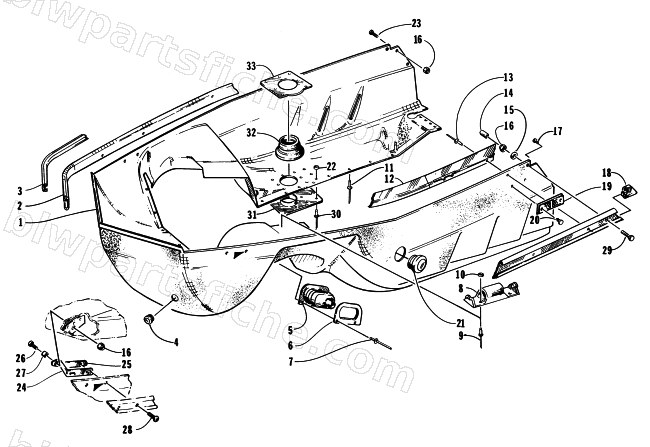

BELLY PAN ASSEMBLY
1997 BEARCAT 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-936 | BELLYPAN,OUTER | 1 | $754.95 | |
| 2 | 0706-952 | BUMPER,FORMED | 1 | $294.95 | |
| 3 | 0616-871 | INSERT,BUMPER-CAMEL-STRIPE-CTL | 1 | $11.95 | |
| 4 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 5 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 6 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 8 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 12 | 0616-969 | CHANNEL,HOOD-W/ SLOTS | 1 | $24.77 | |
| 12 | 0616-970 | CHANNEL,HOOD-W/O SLOTS | 1 | $33.95 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 18 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 18 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 | |
| 19 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 21 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 22 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 23 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 24 | 2706-636 | BRKT,HINGE-RH-PTD BLK | 1 | $21.95 | |
| 24 | 2706-637 | BRKT,HINGE-LH-PTD BLK | 1 | $21.95 | |
| 25 | 0616-454 | PLATE,BACKING-HOOD HINGE | 1 | $46.95 | |
| 26 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 29 | 0623-458 | BOLT,CARRIAGE-.250X1.00 ZY | 1 | $0.95 | |
| 30 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 31 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 32 | 0612-475 | BOOT,EXHAUST | 1 | $54.95 | |
| 33 | 0612-472 | RING,EXHAUST OUTLET-UPPER | 1 | $15.11 |
