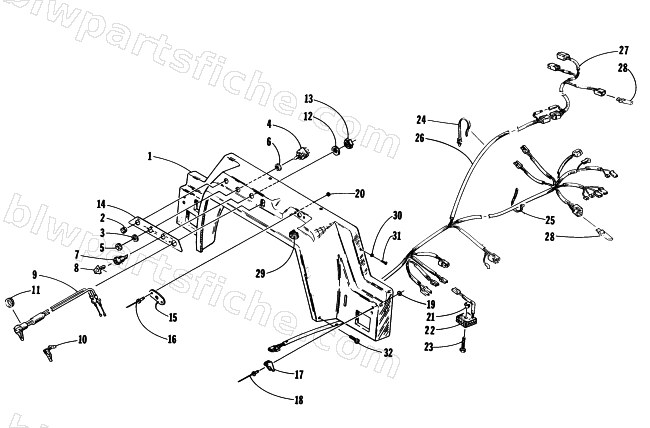

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1997 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-844 | CONSOLE, 20" - W/T | 1 | $402.95 | |
| 2 | 0623-593 | PLUG,HOLE 1/2-STEEL | 1 | $5.09 | |
| 3 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 4 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 5 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 6 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 7 | 0609-256 | SWITCH,IGNITION-NORM. OPEN | 1 | $71.95 | |
| 8 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 9 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 10 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 11 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 12 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 13 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 14 | 2611-470 | DECAL,CONSOLE SWITCH | 1 | $23.95 | |
| 15 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 16 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 17 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 18 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 19 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 20 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 23 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 24 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0686-391 | HARNESS, MAIN WIRING | 1 | $264.95 | |
| 27 | 0686-338 | HARNESS,HEADLIGHT | 1 | $176.95 | |
| 28 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 29 | 0617-234 | FOAM,CONSOLE | 1 | $10.95 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 |
