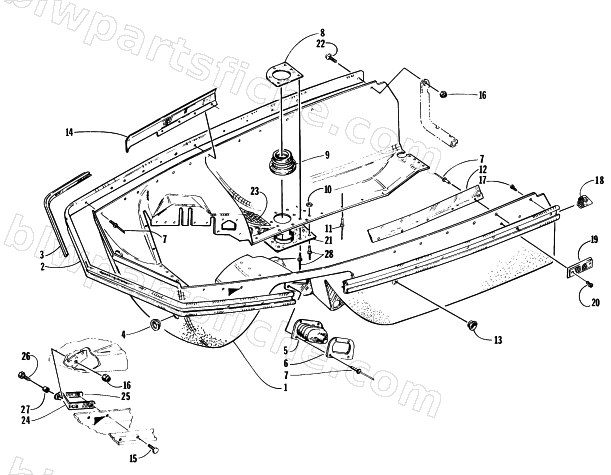

BELLY PAN ASSEMBLY
1997 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-335 | BELLYPAN OUTER | 1 | $861.95 | |
| 2 | 0716-767 | BUMPER,FRONT-FORMED | 1 | $237.95 | |
| 3 | 0616-518 | INSERT,BUMPER-GREEN STRIP | 1 | $19.29 | |
| 4 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 5 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 6 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 8 | 0612-472 | RING,EXHAUST OUTLET-UPPER | 1 | $15.11 | |
| 9 | 0612-470 | BOOT,EXHAUST | 1 | $54.95 | |
| 10 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 11 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 12 | 0616-832 | GUIDE,HOOD-BUMPER | 1 | $32.95 | |
| 13 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 14 | 0616-834 | GUIDE,HOOD-RH | 1 | $23.95 | |
| 14 | 0616-835 | GUIDE,HOOD-LH | 1 | $23.95 | |
| 15 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 18 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 18 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 | |
| 19 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 21 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 22 | 0623-458 | BOLT,CARRIAGE-.250X1.00 ZY | 1 | $0.95 | |
| 23 | 0117-835 | TAPE ALUM REFLECTORIZED 6X6 SQ(0619-727) | 1 | $8.89 | |
| 24 | 0716-264 | BRACKET,HINGE-RH | 1 | $45.95 | |
| 24 | 0716-265 | BRACKET,HINGE-LH | 1 | $46.95 | |
| 25 | 0616-454 | PLATE,BACKING-HOOD HINGE | 1 | $46.95 | |
| 26 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 |
