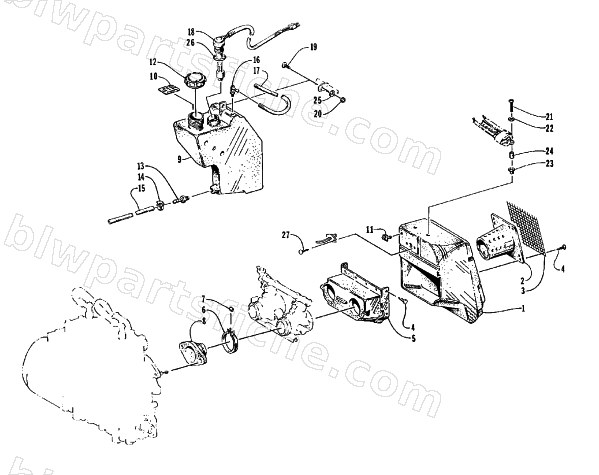

1997 Arctic Cat EXT 580 EFI DLX — AIR SILENCER AND OIL TANK
1997 EXT 580 EFI DLX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-131 | SILENCER,AIR-580 LC EFI | 1 | $167.95 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 0670-221 | BOOT,AIR SILENCER | 1 | $66.95 | |
| 6 | 0670-200 | CLAMP,CARB FLANGE-VM40 W/SPACER | 1 | $24.95 | |
| 7 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 8 | 0670-198 | FLANGE,CARB-40MM W/CLAMP | 1 | $84.95 | |
| 9 | 0670-662 | TANK,OIL-W/ONE INSERT | 1 | $69.95 | |
| 10 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 11 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 12 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 13 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 14 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 15 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 16 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 23 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 24 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 |
