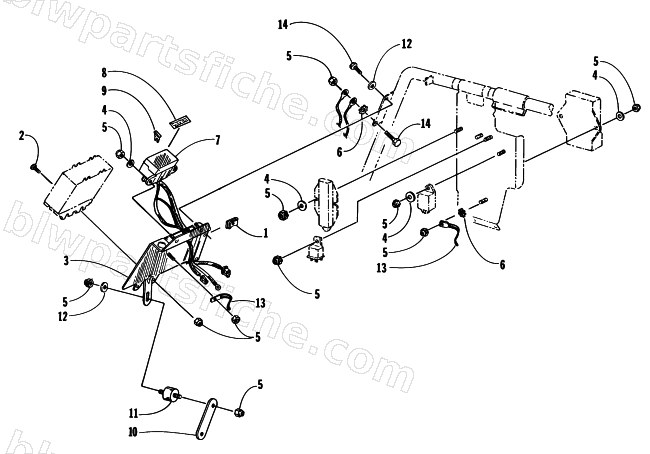

ECU TRAY MOUNTING ASSEMBLY
1997 EXT 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 2 | 8009-580 | SCREW,MACH-CRPH 1/4-20X.75 G2 Z&Y | 1 | $0.15 | |
| 3 | 0716-525 | TRAY,MTG-ECU ASSY | 1 | $42.95 | |
| 4 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 7 | 0745-081 | FUSE BOX ASSY W/DECAL | 1 | $183.95 | |
| 8 | 2611-606 | DECAL,FUSE BOX | 1 | $8.95 | |
| 9 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 9 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 | |
| 11 | 0115-018 | MOUNT,RADIATOR | 1 | $18.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 |
