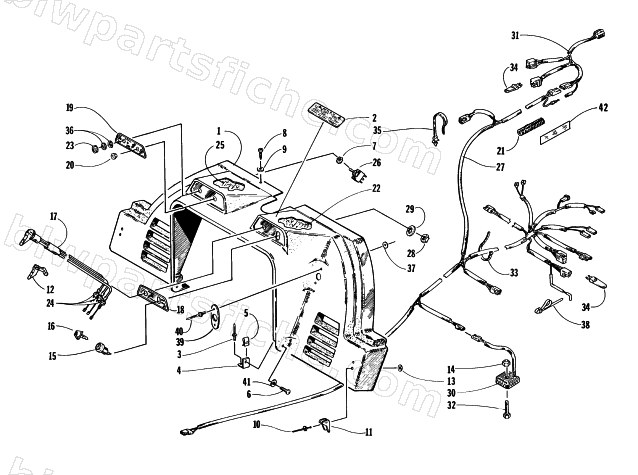

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1997 EXT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-018 | CONSOLE-CARB (ZRT HOOD) | 1 | $432.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0638-630 | LEVER KIT,CHOKE | 1 | $17.87 | |
| 13 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0687-115 | CABLE, CHOKE- VM36/38 TRIPLE | 1 | $156.95 | |
| 18 | 2611-722 | DECAL,CONSOLE SWITCH-RH (CARB) | 1 | $20.95 | |
| 19 | 2611-723 | DECAL,CONSOLE SWITCH-LH | 1 | $16.95 | |
| 20 | 0623-593 | PLUG,HOLE 1/2-STEEL | 1 | $5.09 | |
| 21 | 0706-994 | LOOM CTL 20 ,HARNESS PROTECTOR | 1 | $8.95 | |
| 22 | 0617-202 | FOAM,CONSOLE-RH | 1 | $13.95 | |
| 23 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 24 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 25 | 0617-203 | OAM,CONSOLE-LH | 1 | $17.95 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 28 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 29 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 30 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 31 | 0686-332 | HARNESS,HOOD-HDLHT & INSTR | 1 | $61.95 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 34 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 35 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 36 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 37 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 38 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 39 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 40 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 41 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 42 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 |
