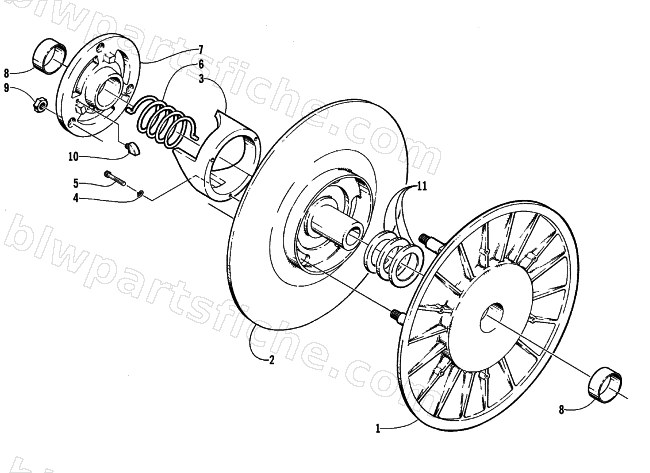

DRIVEN CLUTCH
1997 EXT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0748-022 | SHEAVE W/BRG-BUTN DRIVEN(98 PROD) | 1 | $476.95 | |
| 3 | 0648-005 | BRKT, TORQUE - 55 DEG | 1 | $71.95 | |
| 3 | 0648-002 | BRKT, TORQUE - 53 DEG | 1 | $56.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 6 | 0148-227 | SPRING, DRIVEN-YELLOW | 1 | $39.95 | |
| 7 | 0748-006 | PLATE,RETAINER-BUTTONS W/BEARING | 1 | $58.95 | |
| 8 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0148-177 | BUTTON,DRIVEN CLUTCH | 1 | $7.95 | |
| 11 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 | |
| 11 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 | |
| 72641 | 0726-082 | CLUTCH,DRIVEN-W/ PLATES (YEL,55,2&1) | 1 | $549.95 |
