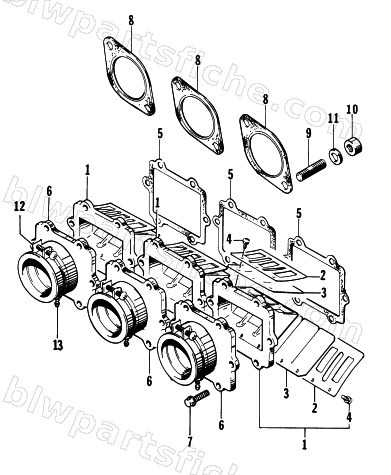

REED VALVE ASSEMBLY
1997 EXT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-124 | VALVE ASSY, REED | 1 | $259.95 | |
| 3 | 3004-177 | VALVE, REED | 1 | $27.95 | |
| 4 | 3004-210 | SCREW, REED VALVE-M3X8 | 1 | $4.95 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3005-034 | FLANGE, INTAKE | 1 | $144.95 | |
| 7 | 3007-380 | BOLT | 1 | $3.16 | |
| 8 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 9 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 10 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 11 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 12 | 3004-312 | EPROM-RED-GAS | 1 | $389.95 | |
| 13 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 |
