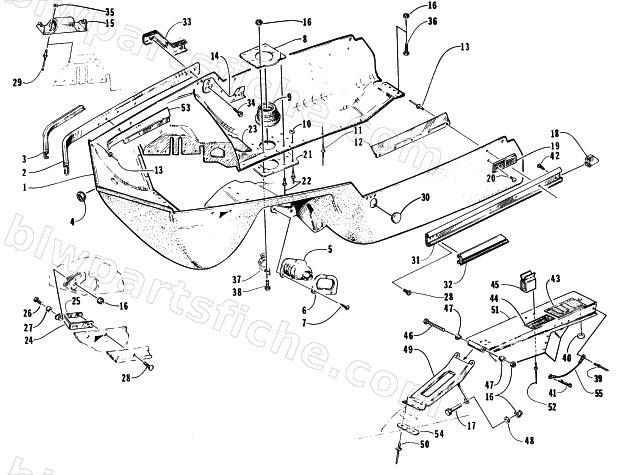

BELLY PAN ASSEMBLY
1997 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-909 | BELLYPAN | 1 | $1,233.95 | |
| 2 | 0716-069 | BUMPER FORMED | 1 | $239.95 | |
| 3 | 1606-509 | INSERT,BUMPER-REAR-BLK-77". | 1 | $73.79 | |
| 4 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 7 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 8 | 0712-881 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 9 | 0612-470 | BOOT,EXHAUST | 1 | $54.95 | |
| 10 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 11 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 12 | 1606-181 | GUIDE,HOOD | 1 | $15.95 | |
| 13 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 14 | 0616-606 | GUIDE,HOOD-CENTER-RH | 1 | $41.95 | |
| 14 | 0616-607 | GUIDE,HOOD-CENTER-LH | 1 | $30.95 | |
| 15 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 18 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 18 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 | |
| 19 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 21 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 23 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 24 | 0716-264 | BRACKET,HINGE-RH | 1 | $45.95 | |
| 24 | 0716-265 | BRACKET,HINGE-LH | 1 | $46.95 | |
| 25 | 0616-454 | PLATE,BACKING-HOOD HINGE | 1 | $46.95 | |
| 26 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 29 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 30 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 31 | 0716-368 | BUMPER,FORMED-RH | 1 | $57.95 | |
| 31 | 0716-369 | BUMPER,FORMED-LH | 1 | $57.95 | |
| 32 | 0616-621 | INSERT,BUMPER-SIDE | 1 | $7.79 | |
| 34 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 35 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 36 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 37 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 38 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 39 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 40 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 41 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 42 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 43 | 2611-760 | DECAL,CLUTCHING-HI ALT. | 1 | $11.95 | |
| 44 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 45 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 46 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 47 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 48 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 49 | 0716-226 | BRACKET,GUARD | 1 | $26.95 | |
| 50 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 51 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 52 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 53 | 0616-834 | GUIDE,HOOD-RH | 1 | $23.95 | |
| 53 | 0616-835 | GUIDE,HOOD-LH | 1 | $23.95 | |
| 54 | 0616-649 | PLATE,BACKING-GUARD BRACKET | 1 | $6.95 | |
| 55 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 |
