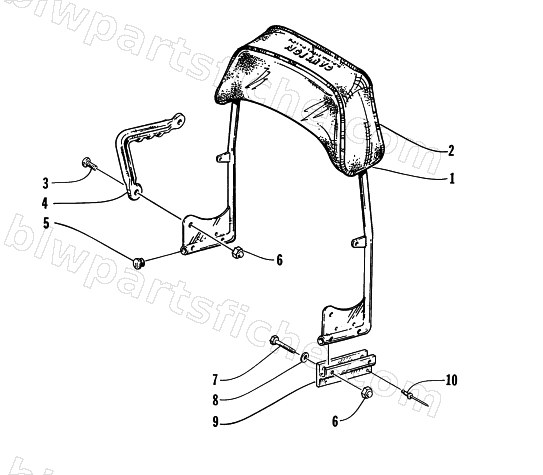

1997 Arctic Cat PANTHER 550 — BACKREST ASSEMBLY
1997 PANTHER 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-513 | BACKREST-W/ COVER | 1 | $402.95 | |
| 2 | 0716-312 | COVER,BACKREST | 1 | $116.95 | |
| 3 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 4 | 0606-750 | HANDGRIP,BACKREST | 1 | $36.95 | |
| 5 | 0606-487 | CLOSURE,TUBE-3/4 X 14 GA. | 1 | $13.73 | |
| 7 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 2706-601 | BRACKET,BACKREST MOUNT-PTD BLK | 1 | $165.95 | |
| 10 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 |
