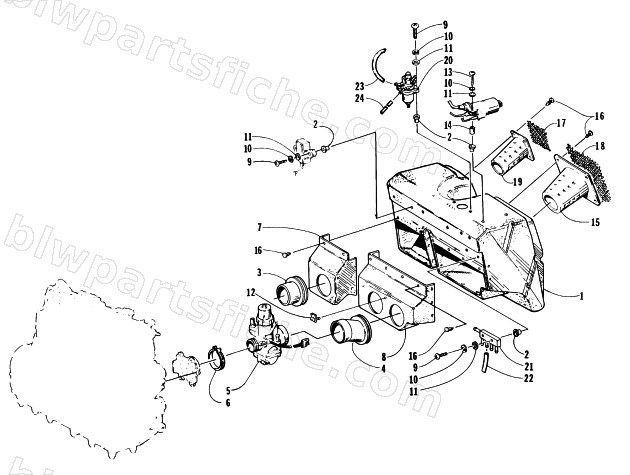

1997 Arctic Cat POWDER EXTREME — CARBURETOR AND AIR SILENCER ASSEMBLY
1997 POWDER EXTREME
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-221 | SILENCER, AIR-W/INSERTS 97 PWD EXE | 1 | $176.95 | |
| 2 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 3 | 1670-402 | BOOT, AIR SILENCER | 1 | $26.95 | |
| 4 | 1670-401 | BOOT, AIR SILENCER | 1 | $24.77 | |
| 5 | 0770-219 | CARB ASSY- (VM36-179) M.A.C. OUTER | 1 | $455.95 | |
| 6 | 3004-212 | CLAMP, INTAKE,M52 | 1 | $27.95 | |
| 7 | 0670-470 | EXTENTION,AIRBOX-RH | 1 | $61.95 | |
| 8 | 0670-471 | EXTENTION,AIRBOX-LH | 1 | $66.95 | |
| 9 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 10 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0670-203 | FUNNEL,AIR SILENCER 3.5 | 1 | $26.95 | |
| 16 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 17 | 0670-208 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 18 | 0670-207 | SCREEN,AIR INTAKE | 1 | $27.95 | |
| 19 | 0670-205 | FUNNEL,AIR SILENCER 2 | 1 | $26.95 | |
| 20 | 0670-626 | PRESSURE,COMPENSATOR-M A C | 1 | $479.95 | |
| 21 | 0670-759 | MANIFOLD,PRESSURE- COMPENSATOR | 1 | $133.95 | |
| 22 | 0610-329 | HOSE, VACUUM-4.92 LG W/CLAMPS | 1 | $2.88 | |
| 23 | 0610-331 | HOSE, VACUUM-12.00 LG W/CLAMPS | 1 | $9.59 | |
| 24 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 |
