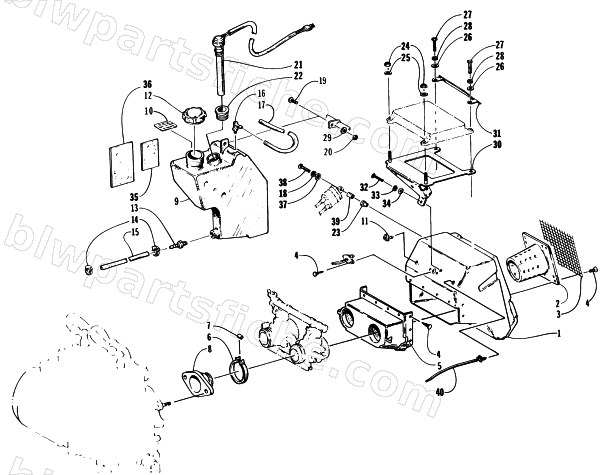

1997 Arctic Cat POWDER SPECIAL EFI — AIR SILENCER, AND OIL TANK
1997 POWDER SPECIAL EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-224 | SILENCER, AIR-W/INSERTS 97 PS EFI | 1 | $106.95 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 0670-221 | BOOT,AIR SILENCER | 1 | $66.95 | |
| 6 | 0670-200 | CLAMP,CARB FLANGE-VM40 W/SPACER | 1 | $24.95 | |
| 7 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 8 | 0670-198 | FLANGE,CARB-40MM W/CLAMP | 1 | $84.95 | |
| 9 | 0670-662 | TANK,OIL-W/ONE INSERT | 1 | $69.95 | |
| 10 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 11 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 12 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 13 | 0670-117 | OUTLET,OILTANK-5/16 TUBE | 1 | $3.95 | |
| 14 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 15 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 15 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 16 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 22 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 23 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 26 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 27 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 28 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 29 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 30 | 0716-496 | TRAY,MOUNTING-ECU ASS'Y | 1 | $43.95 | |
| 31 | 0616-986 | COVER,ECU WIRE PROTECTOR | 1 | $13.95 | |
| 32 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 34 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 35 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 36 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 39 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 40 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
