1997 Arctic Cat POWDER SPECIAL EFI — ELECTRICAL
1997 POWDER SPECIAL EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

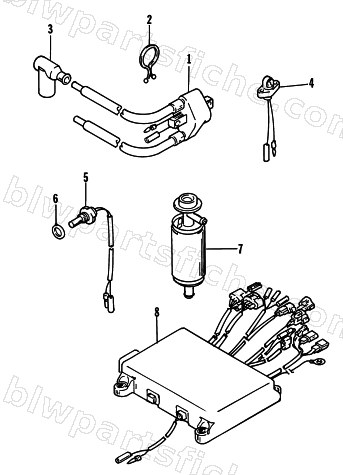

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 2 | 3004-685 | CLIP | 1 | $3.95 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-104 | WASHER, COOLING WATER SENSOR | 1 | $6.95 | |
| 7 | 3005-268 | PUMP ASSY,FUEL(KEFI) | 1 | $721.95 | |
| 8 | 3005-234 | ECU, CIRCLE | 1 | $2,000.95 | |
| 8 | 3005-235 | ECU, SQUARE | 1 | $1,818.95 | |
| 8 | 3005-236 | ECU, TRIANGLE | 1 | $1,818.95 | |
| 9 | 3005-088 | EPROM,HI-KEFI-CIRCLE | 1 | $152.95 | |
| 9 | 3005-089 | EPROM,MID-KEFI-SQUARE | 1 | $163.95 | |
| 9 | 3005-090 | EPROM,LOW-KEFI-TRIANGLE | 1 | $154.95 | |
| 9 | 3005-098 | EPROM,ETHANOL (KEFI)-CIRCLE | 1 | $152.95 | |
| 9 | 3005-099 | EPROM,ETHANOL (KEFI)-SQUARE | 1 | $170.95 | |
| 9 | 3005-100 | EPROM,ETHANOL (KEFI)-TRIANGLE | 1 | $154.95 |
